4 Source Outputs
The 2080-OB4 provides four source digital outputs for extending discrete output capacity in applicable controller configurations.

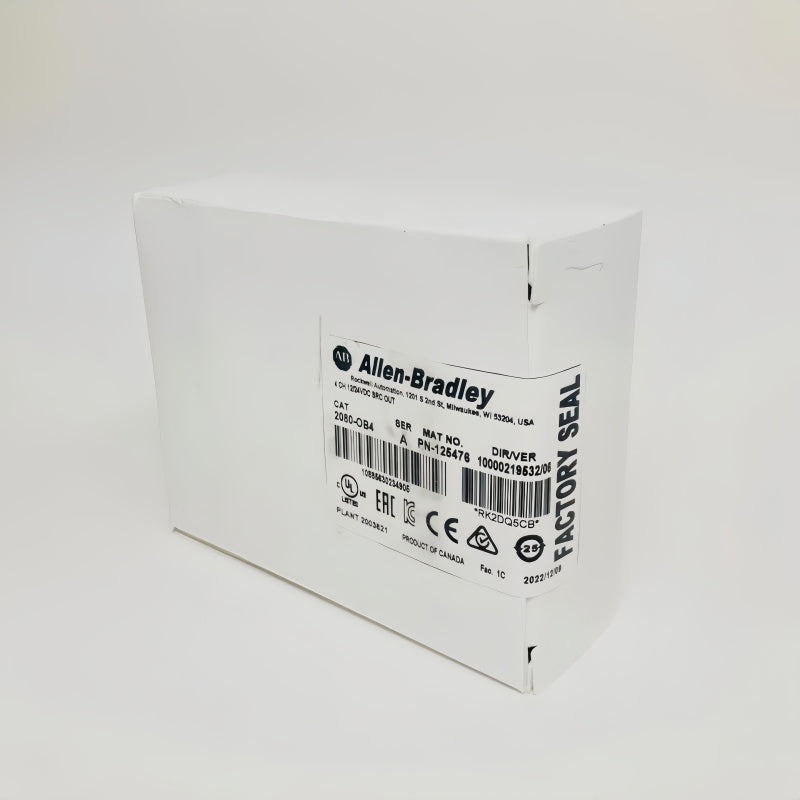

Allen-Bradley 2080-OB4 Digital Output Module 12/24VDC 4-Point Source
Available in stock (200)
Regular price
$51.64
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 2080-OB4 |
| Product Category | Digital Output Module |
| Product Family | Micro800 |
| Module Type | Digital Output Plug-In Module |
| Number of Outputs | 4 |
| Output Type | Source, Transistor |
| Output Voltage | 12/24 VDC |
| On-State Voltage | 10-30 VDC, 24 VDC Nominal |
| On-State Current | 0.5 A Maximum Steady State |
| Surge Current | 2 A for 2 s Minimum |
| Power Supply Voltage | 10.8-30 VDC |
| Isolation Voltage | 50 V Continuous |
| Connection Type | Screw Connection |
Key Features
12/24VDC Output
Rockwell Automation identifies the 2080-OB4 as a 12/24 VDC source digital output plug-in module.
Transistor Outputs
The four digital output channels use transistor output technology with a source output configuration.
0.5A Steady-State Current
Each documented output specification includes a maximum steady-state on-state current of 0.5 A.
4 Channel Status Indicators
Four yellow status indicators provide channel-level output status indication.
Micro800 Plug-In Module
The 2080-OB4 is a digital output plug-in module within the Allen-Bradley Micro800 system.
Applications
- Industrial digital output expansion
- Machine automation output control
- Discrete actuator control circuits
- Indicator and signaling control
- Industrial control panel applications
- Micro800 controller I/O expansion
- Equipment sequencing applications
- Automation system maintenance projects
Purchase Information
We support online purchase of the Allen-Bradley 2080-OB4 Digital Output Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 2080-OB4?
Allen-Bradley 2080-OB4 is a Micro800 four-point digital output plug-in module with 12/24 VDC source transistor outputs.
How many outputs does 2080-OB4 provide?
The module provides four source digital output channels.
What type of outputs does 2080-OB4 use?
The documented digital output type is transistor with a source output configuration.
What output voltage is specified for 2080-OB4?
Rockwell Automation identifies the module as a 12/24 VDC source output module, with an on-state voltage range of 10-30 VDC and 24 VDC nominal.
What is the maximum steady-state output current?
The documented maximum steady-state on-state current is 0.5 A.
What surge current is specified for 2080-OB4?
The technical data specifies a 2 A surge current for a minimum duration of 2 seconds.
What power supply voltage range is specified?
The documented power supply voltage range is 10.8-30 VDC.
Does 2080-OB4 have output status indicators?
Yes. The module provides four yellow channel status indicators.
What is the operating temperature range of 2080-OB4?
The documented operating temperature range is -20°C to +65°C.
What applications can 2080-OB4 be considered for?
It can be considered for discrete output expansion, machine control, signaling and actuator control after electrical and system requirements have been checked.
Can 2080-OB4 be used in an existing Micro800 system?
The controller model, available plug-in slot, output voltage, load current, source output requirements and wiring configuration should be verified against the existing system requirements.
What should be checked before ordering 2080-OB4?
Check the complete 2080-OB4 catalog number, required four-point source output configuration, 12/24 VDC load requirements, output current and controller plug-in requirements before purchasing.
