Right-Side Termination
The 1769-ECR is specifically designed as the right end cap and terminator for supported 1769 Compact I/O and CompactLogix assemblies.

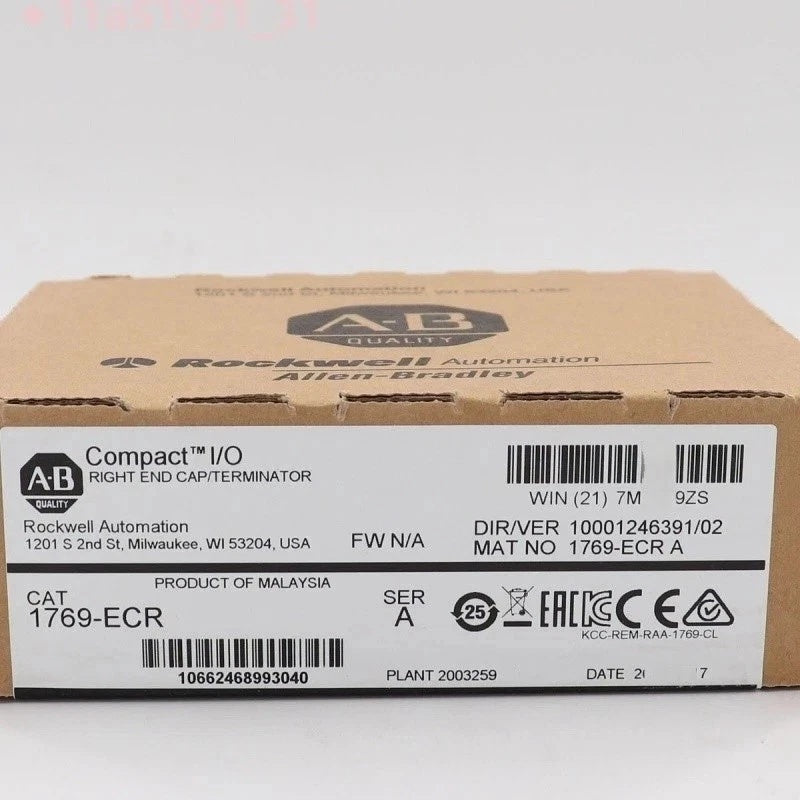

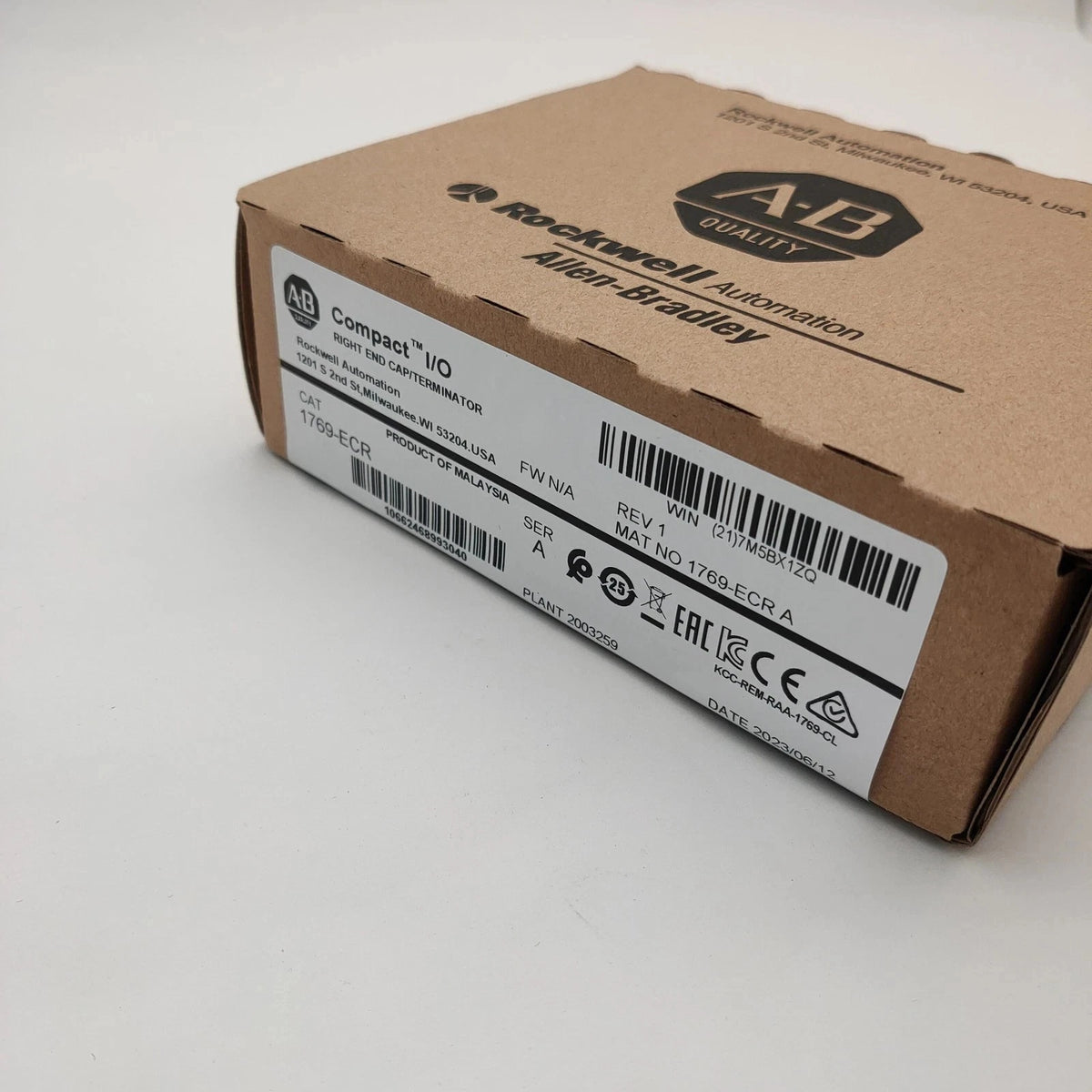

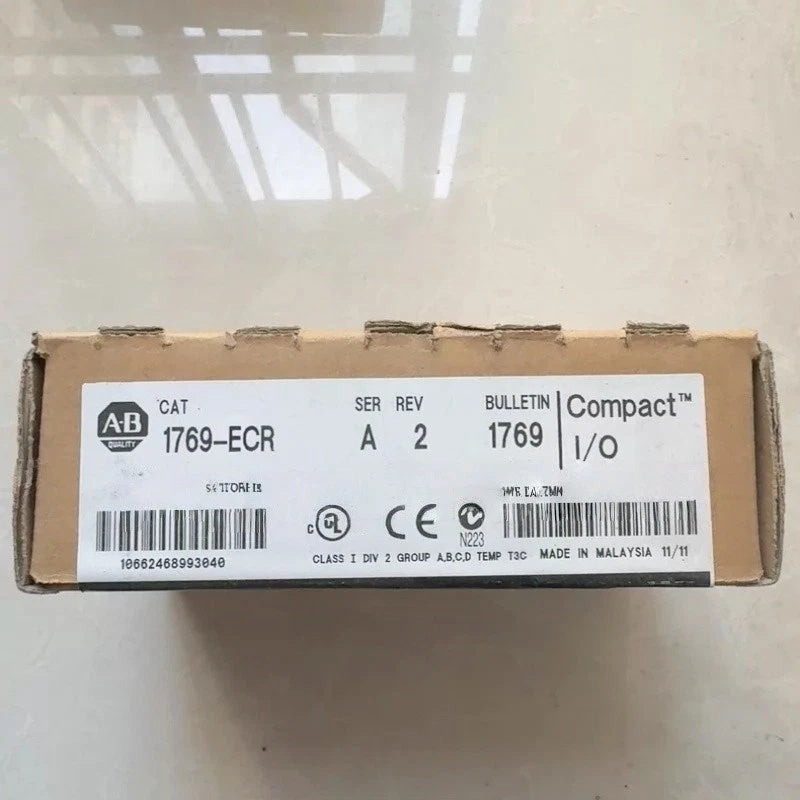

Allen-Bradley 1769-ECR CompactLogix Right End Cap/Terminator 0-60°C
Available in stock (400)
Regular price
$17.40
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 1769-ECR |
| Product Category | Right End Cap/Terminator |
| Product Family | CompactLogix / 1769 Compact I/O |
| Type | Right End Cap/Terminator |
| Installation Position | Right End of 1769 Communication Bus |
| Function | Completes the End of the Communication Bus |
| Temperature Rating | 0-60°C (32-140°F) |
| UPC | 662468993043 |
Key Features
Communication Bus Completion
The end cap completes the end of the 1769 communication bus as part of the installed I/O assembly.
1769 System Accessory
The 1769-ECR is an accessory for 1769-based CompactLogix and Compact I/O system configurations requiring right-side bus termination.
Defined Installation Position
The ECR designation identifies the right-side end cap configuration and should be selected according to the physical arrangement of the 1769 system.
Industrial Temperature Rating
The documented temperature rating for the 1769-ECR is 0 to 60°C (32 to 140°F).
Applications
- 1769 Compact I/O assemblies
- CompactLogix control systems
- Right-side communication bus termination
- Local I/O bank configurations
- Industrial control panel assemblies
- Machine automation control systems
- Distributed control I/O installations
- 1769 modular automation systems
Purchase Information
We support online purchase of the Allen-Bradley 1769-ECR Right End Cap/Terminator. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 1769-ECR?
It is a right end cap and terminator used with supported 1769 Compact I/O and CompactLogix system configurations.
What is the function of the 1769-ECR?
Its documented function is to complete the end of the 1769 communication bus.
Where is the 1769-ECR installed?
It is installed at the right end of the applicable 1769 communication bus assembly.
Is 1769-ECR a left or right end cap?
The 1769-ECR is the right end cap/terminator.
What product family is it associated with?
It is associated with 1769 Compact I/O and CompactLogix system configurations.
What is the documented temperature rating?
The documented temperature rating is 0 to 60°C (32 to 140°F).
Is 1769-ECR an I/O signal module?
No. It is an end cap/terminator used to complete the communication bus rather than an input or output signal module.
Is 1769-ECR the same as 1769-ECL?
No. The 1769-ECR is the right end cap/terminator, while the ECL designation identifies a left end cap configuration.
What should be checked when selecting an end cap?
The complete catalog number, required installation side and the configuration of the 1769 communication bus should be checked before ordering.
Can 1769-ECR replace another 1769 end cap?
It can be considered after the complete model number and technical requirements have been checked. Installation position, system architecture and communication-bus requirements should be verified against existing system requirements.
What should be checked before ordering 1769-ECR?
Confirm that the system requires the 1769-ECR right-side end cap and verify the controller, I/O arrangement and communication-bus configuration before ordering.
