ControlLogix 5580 Platform
The 1756-L83E is a ControlLogix 5580 controller designed for modular industrial control and automation systems.

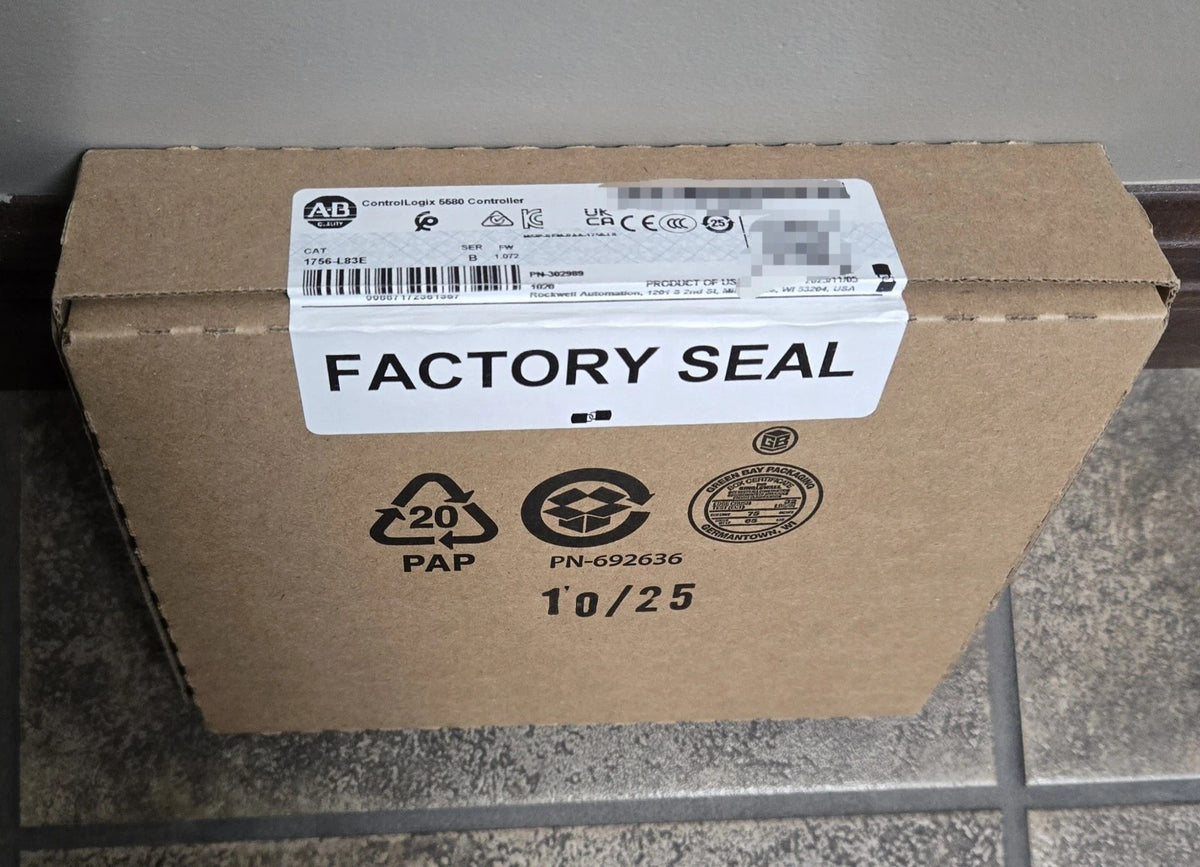

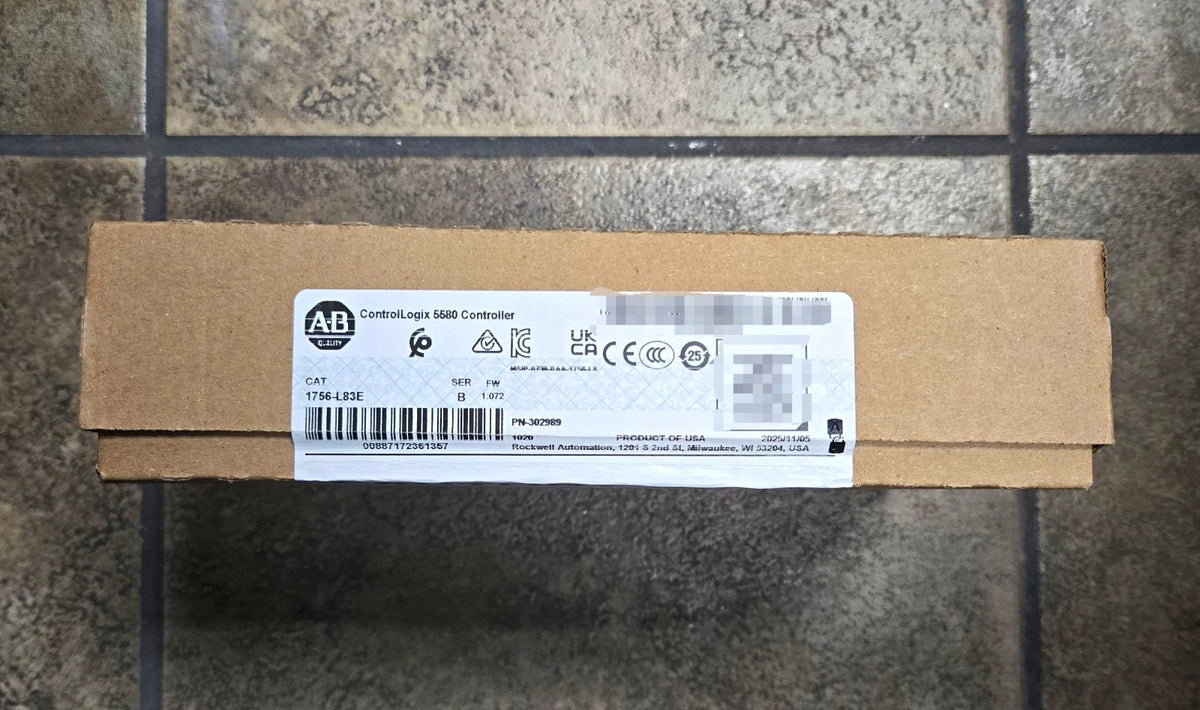

Allen-Bradley 1756-L83E ControlLogix 5580 PLC Controller 10MB 1Gb Ethernet
Available in stock (400)
Regular price
$3,693.41
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 1756-L83E |
| Product Category | PLC Controller |
| Product Family | ControlLogix 5580 |
| User Memory | 10 MB |
| EtherNet/IP Devices | Up to 250 with Logix Designer Version 30 or Later |
| Ethernet Port | 1 Embedded EtherNet/IP Port |
| Ethernet Link Speed | 10/100/1000 Mbps |
| Local Programming Port | 1 USB 2.0 Type B |
| Controller Tasks | 32 |
| Programs per Task | 1000 |
| Motion Axes Supported | 256 |
| Nonvolatile Memory Option | Secure Digital |
| Display | 4-Character Alphanumeric Display |
| Current Draw | 1.20 A at 5.1 V DC; 5 mA at 1.2 V DC |
| Power Dissipation | 6.2 W at Full Load |
| UPC | 887172361357 |
Key Features
10 MB User Memory
This controller provides 10 MB of user memory for control applications, programs and associated project data.
Gigabit EtherNet/IP
An embedded Ethernet port supports 10 Mbps, 100 Mbps and 1 Gbps link speeds for EtherNet/IP communication.
Up to 250 EtherNet/IP Devices
The 1756-L83E supports up to 250 EtherNet/IP devices when used with Logix Designer version 30 or later.
Integrated Motion Support
The controller supports up to 256 motion axes for applicable industrial motion-control architectures.
USB Programming Port
A USB 2.0 Type B port is provided for local programming, configuration, firmware updates and online edits.
Applications
- Industrial machine control systems
- Production line automation
- Process control applications
- EtherNet/IP control networks
- Integrated motion-control systems
- Material handling automation
- Manufacturing equipment control
- Modular ControlLogix automation systems
Purchase Information
We support online purchase of the Allen-Bradley 1756-L83E PLC Controller. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 1756-L83E?
It is a ControlLogix 5580 controller for industrial automation and control applications.
How much user memory does 1756-L83E provide?
The controller provides 10 MB of user memory.
Does 1756-L83E have built-in Ethernet?
Yes. It has one embedded EtherNet/IP Ethernet port.
What Ethernet speeds are supported?
The embedded Ethernet interface supports 10 Mbps, 100 Mbps and 1 Gbps link speeds.
How many EtherNet/IP devices can 1756-L83E support?
The controller supports up to 250 EtherNet/IP devices when used with Logix Designer version 30 or later.
Does it have a USB programming port?
Yes. One USB 2.0 Type B port is provided for local programming and related controller service functions.
How many controller tasks are supported?
The ControlLogix 5580 platform supports 32 controller tasks and up to 1000 programs per task.
Does 1756-L83E support motion control?
Yes. The documented specification lists support for up to 256 motion axes.
What nonvolatile memory option is supported?
The documented nonvolatile memory option is Secure Digital storage.
What display is integrated into the controller?
The 1756-L83E includes a four-character alphanumeric display.
Can 1756-L83E replace another ControlLogix controller?
It can be considered after the complete model number and technical requirements have been checked. User memory, chassis, I/O, network, firmware, motion and application requirements should be verified against existing system requirements.
What should be checked before ordering?
The complete catalog number, ControlLogix chassis requirements, 10 MB memory capacity, EtherNet/IP node requirements, firmware and Logix Designer version, I/O architecture, motion requirements and existing application configuration should be checked before ordering.
