The 1746-IM16 is a digital AC input module designed for the Allen-Bradley SLC 500 modular control platform.

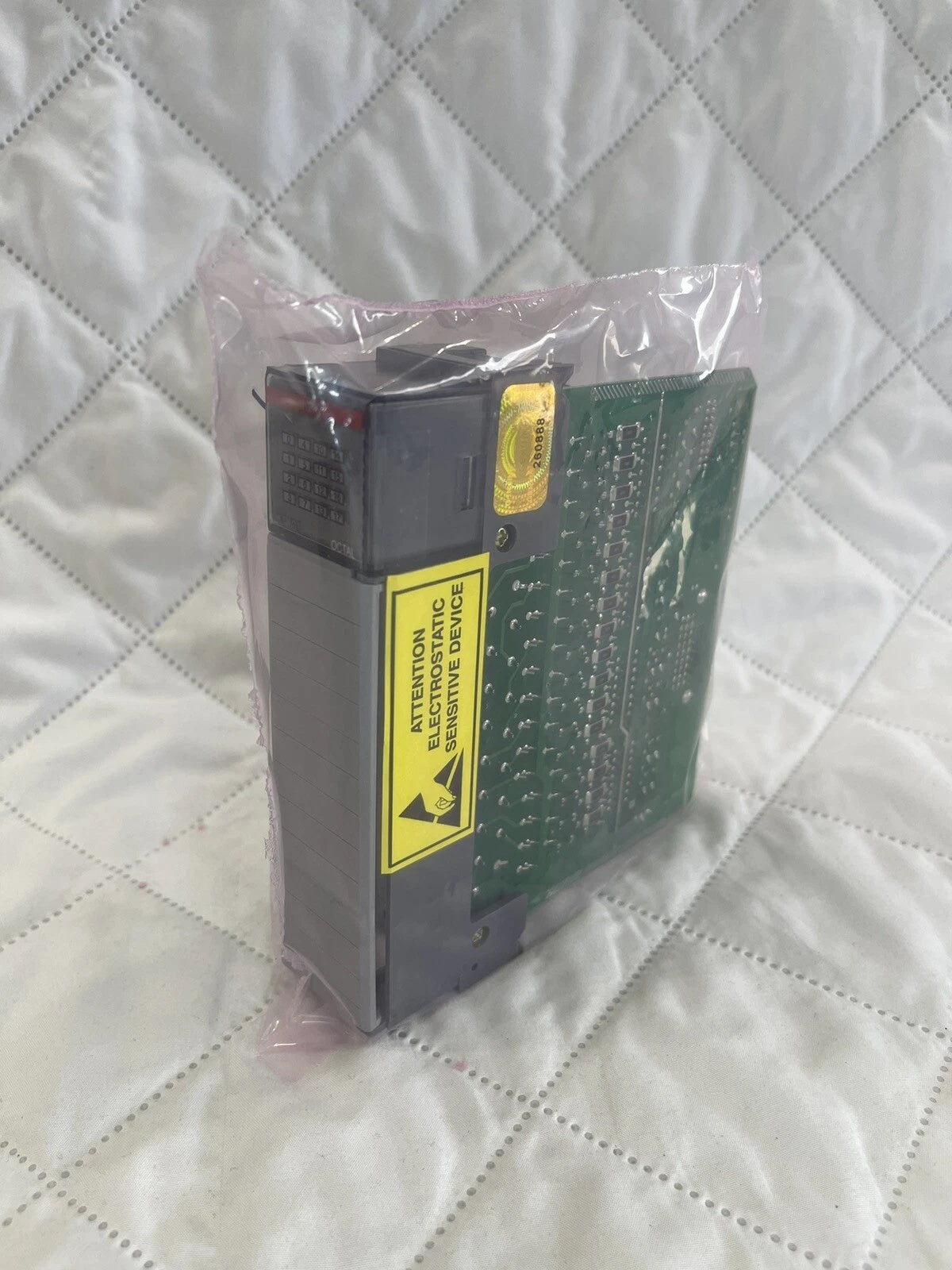

Allen-Bradley 1746-IM16 SLC 500 Input Module 16-Point 200/240V AC
Available in stock (400)
Regular price
$64.32
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 1746-IM16 |
| Product Category | Input Module |
| Product Family | SLC 500 |
| Module Type | Digital AC Input Module |
| Number of Inputs | 16 |
| Input Voltage | 200/240 V AC |
| Operating Voltage Range | 170-265 V AC at 47-63 Hz |
| Inputs per Common | 8 |
| Backplane Current | 85 mA at 5 V DC |
| Off-State Voltage | 50 V AC Maximum |
| Off-State Current | 2 mA Maximum |
| Input Signal Delay | 35 ms Maximum On; 45 ms Maximum Off |
Key Features
16 Input Points
The module provides 16 discrete AC input points arranged as two groups of eight inputs per common.
200/240 V AC Inputs
The 1746-IM16 is specified for 200/240 V AC input signals with a documented operating range of 170 to 265 V AC.
47-63 Hz Operation
The documented AC input operating range applies at frequencies from 47 to 63 Hz.
Backplane Powered
The module has a documented SLC backplane current requirement of 85 mA at 5 V DC.
Grouped Input Architecture
The 16 input points are divided into two common groups, supporting structured field-input wiring within an SLC 500 I/O system.
Applications
- Industrial AC discrete signal monitoring
- Machine status input systems
- Limit switch and contact monitoring
- Production equipment control panels
- SLC 500 PLC input expansion
- Manufacturing automation systems
- Process equipment status monitoring
- Industrial machine control systems
Purchase Information
We support online purchase of the Allen-Bradley 1746-IM16 Input Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 1746-IM16?
It is a 16-point digital AC input module for the SLC 500 modular control platform.
How many input points does 1746-IM16 provide?
The module provides 16 discrete AC input points.
What is the nominal input voltage?
The 1746-IM16 is specified as a 200/240 V AC input module.
What is the operating voltage range?
The documented operating range is 170 to 265 V AC at 47 to 63 Hz.
How are the input points grouped?
The module has two groups of eight input points, with eight inputs per common.
What backplane current does 1746-IM16 require?
The documented backplane current is 85 mA at 5 V DC.
What is the maximum off-state voltage?
The documented maximum off-state voltage is 50 V AC.
What is the maximum off-state current?
The documented maximum off-state current is 2 mA.
What are the documented input signal delays?
The documented maximum signal delays are 35 ms for the on transition and 45 ms for the off transition.
Is 1746-IM16 an analog input module?
No. The 1746-IM16 is a discrete digital AC input module.
Can 1746-IM16 replace another SLC 500 input module?
It can be considered after the complete model number and technical requirements have been checked. Input voltage, channel count, common arrangement, backplane requirements and field wiring should be verified against existing system requirements.
What should be checked before ordering?
The complete catalog number, SLC 500 system requirements, 16-point configuration, 200/240 V AC signal requirement, operating voltage range, common arrangement and existing field wiring should be checked before ordering.
